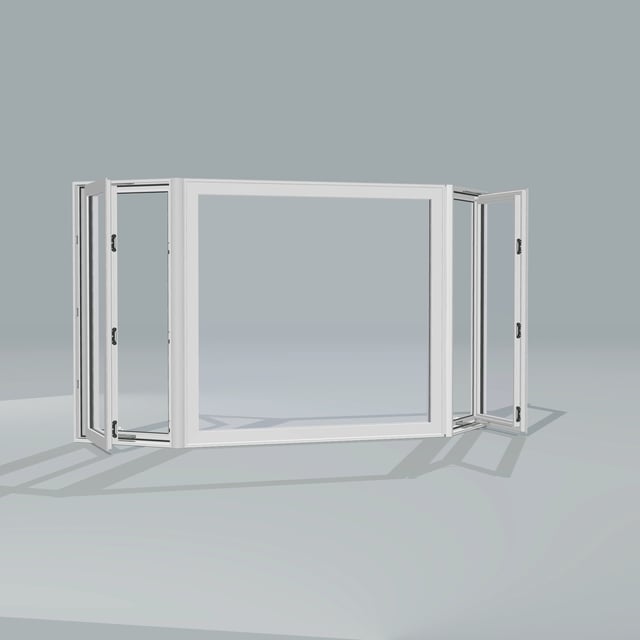

Bay Window · 96 × 54 inches
Three sections: an angled bay with a broad fixed center.
45° projection angle · Double pane · Low-E 272 / clear · argon
View this bay configuration and current priceBay vs. Bow Windows: Differences, Costs & Choosing Your Style
A bay window usually combines three sections: a wider centre window with an angled window on each side. A bow window uses a series of similarly sized windows, commonly four or five, to create a gentler curve. Both project beyond the exterior wall. The best choice depends on your opening, the view, ventilation and the installation work involved.
Bay vs. bow windows at a glance
| Feature | Bay window | Bow window |
|---|---|---|
| Typical arrangement | Three sections with a wider centre | Four or five similarly sized sections |
| Exterior shape | Defined angles | A gentler, curved appearance |
| View | Broad centre view with views to each side | View distributed across several sections |
| Ventilation | Operating side windows can flank a fixed centre | Selected sections can be configured to open |
| Quote details | Overall size, side angles, projection and operating sections | Overall size, number of sections, projection and operating sections |
These are typical layouts. Confirm the available arrangement and dimensions for your project before ordering.
When to choose a bay window
Choose a bay if you like a distinct, angular projection and a large centre view. The centre section can be fixed, with operating flankers on either side. The interior may allow a window seat or display ledge, depending on the selected head and seat arrangement and the space available.
Compare Panes bay window options and include a photo of your existing opening when requesting a quote.
When to choose a bow window
Choose a bow if you prefer a softer exterior curve and a view divided across several similar sections. Decide which sections need to open: an all-fixed arrangement and one with operating windows serve different ventilation needs.
Explore Panes bow windows and discuss the number of sections, overall width and projection with the quoting team.
What affects the cost of bay and bow windows?
Compare complete quotes for the same opening and scope. The number of sections alone does not determine the final price. Ask each quote to identify:
- Overall width, height and projection, including the selected angles or arrangement.
- Fixed and operating sections, hardware and screens.
- Glass package, finishes, grilles and any privacy requirements.
- Head and seat details, interior trim and exterior finishing.
- Delivery and any installation, removal, structural or weatherproofing work.
Changing a flat window to a projecting window can involve different work from replacing an existing bay or bow. A site review is needed to confirm support, roof or overhang details, drainage and any required approvals. A larger opening is not automatically suitable for either style.
Glass, comfort and ventilation
Compare the ratings for the complete window configuration. Glass coatings, glazing choice, window size and which sections open all affect performance. Consider the direction the window faces and how the room is used, rather than assuming that one shape is always more efficient. Our glass and coatings guide explains the choices.
Can a bay window be replaced with a bow?
It may be possible, but it is not simply a change in the number of panes. The new assembly must suit the opening, projection and support details. Send photos of the interior and exterior, approximate dimensions and your project address so the scope can be reviewed.
Planning your next step
Start with our window measuring guides, then send your sizes and photos for a quote. Confirm the final dimensions and installation responsibilities before placing an order. Panes offers supply-only windows for your own contractor; installation availability is confirmed by project address.
You can also compare all Panes window styles if a fixed, casement or sliding window may better suit the opening.
Compare two complete bay and bow configurations
Use a matching frame size and finish to compare the two arrangements. These made-to-order examples show the exact product configuration; each product page gives its current price and additional exterior and interior views.

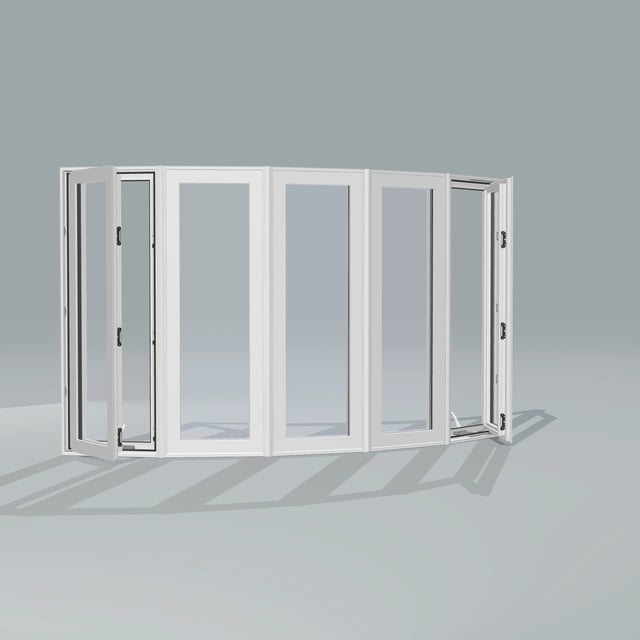

Bow Window · 96 × 54 inches
Five sections: a curved bow with three fixed center sections.
15° projection angle · Double pane · Low-E 272 / clear · argon
View this bow configuration and current priceCompare the same scope
Both examples have a 96 × 54 inch frame, white exterior and interior, operating casement ends, fixed center glass and no nailing flange. Head and seat boards, brickmould and interior jamb extensions are not included. Product prices exclude tax, delivery and installation. Review support, roof, flashing and finishing work with your installer.
Order for your opening
The listed dimensions describe the configured frame, not the rough opening. Confirm projection, section widths, operating direction and the approved installation details before ordering. You can change compatible dimensions and options in the designer; the price changes with those selections.
Plan production and delivery
Custom vinyl windows have an estimated 15–20 business days of production before freight transit. Confirm the project address, delivery access and complete order total before scheduling installation.
See the projection and the curve
An exterior bay view and an interior curved arrangement show why the surrounding wall and room layout matter.
A bay viewed from outside
The angled side windows and projecting base affect the exterior appearance and the space inside the room.
Explore bay windowsA curved view from inside
Several window sections follow a curve. Review the actual projection, operating sections and room layout before choosing a bow assembly.
Explore bow windowsUse these photographs to compare design ideas. Ask us to confirm the available products, dimensions, glass and finishes for your opening.
